This is the easement for a 36-inch fracked methane pipeline that the Lowndes County Commission approved on January 26, 2016, saying it was a good business decision.

Nevermind the letter that the Chairman sent to FERC on April 11, 2014, Sabal Trail will be expected to adhere and honor all Lowndes County Ordinances -Bill E Slaughter, JR to FERC.

Anyway, this easement has a couple of interesting clauses.

On page 2, “4.a. Single Pipeline; Pipeline Depth. This Easement allows a single underground Pipeline with a maximum pipe outer diameter of thirty-six (36) inches, and with the maximum allowable operating pressure” of natural gas transported within the pipeline as permitted by applicable law, rule or regulation.”

Now that Sabal Trail wants a second pipeline, it will have to negotiate with landowners again, including the Lowndes County government. And it is already doing so; see a following post.

Sabal Trail pipeline Easement with Lowndes County 2016-01-26, Between Railroad Ave. and Madison Highway

Another interesting clause is on page 5, “13. Taxes. Grantee shall assume and pay the amount of any taxes lawfully assessed and applicable to Grantee and due and owing on the Pipeline, Pipeline Facilities or Easement Area.”

Evidently if you have enough leverage, you can get Sabal Trail to agree to things they never would have offered.

The property is between Railroad Avenue and Madison Highway, south of Clyattville. It is near Clyatt Mill Creek, and uphill from the Withlacoochee River. It has an old landfill on one of the parcels; thus the monitoring wells in the easement.

PDF of the easement, received in response to a LAKE open records request, is on the LAKE website.

Images of each page are below.

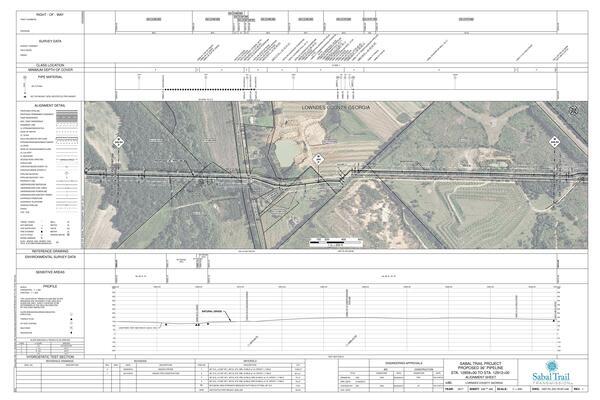

But first, here is a Sabal Trail alignment map that covers the subject property. For such alignment maps for the entire pipeline in all three states, see LAKE: Sabal Trail Transmission alignment maps 2016-04-07.

1657-PL-DG-70197-246, STA. 12859+00 TO STA. 12912+00, MP 243.54, MP 244.55, 12868+90, 2016-03-14, CL CREEK, Railroad Ave., Clyatt Mill Creek, KINDER MORGAN PIPELINE, LOWNDES COUNTY, GEORGIA, https://www.google.com/maps/@30.6805050,-83.3264430,17z/data=!3m1!4b1!4m2!3m1!1s0x0:0x0

STT

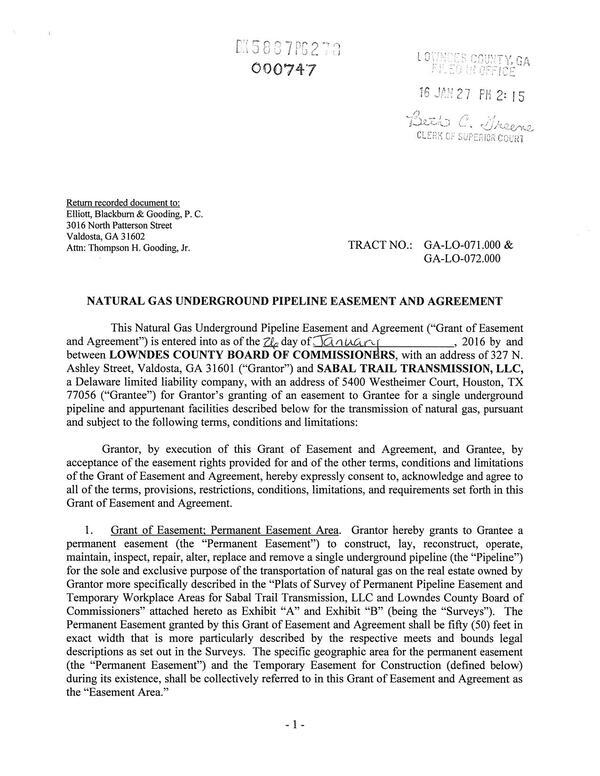

NATURAL GAS UNDERGROUND PIPELINE EASEMENT AND AGREEMENT
PDF

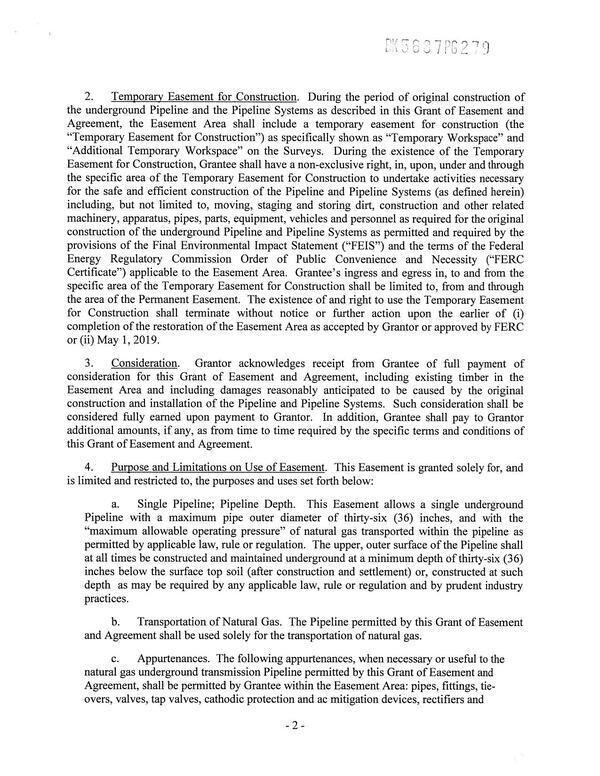

4.a. Single Pipeline; Pipeline Depth. This Easement allows a single underground Pipeline with a maximum pipe outer diameter of thirty-six (36) inches, and with the…
PDF

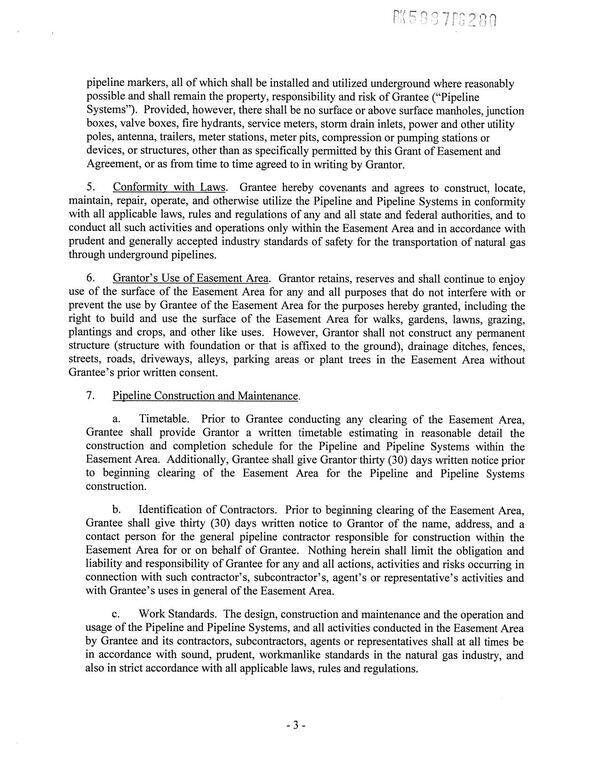

7. Pipeline Construction and Maintenance.
PDF

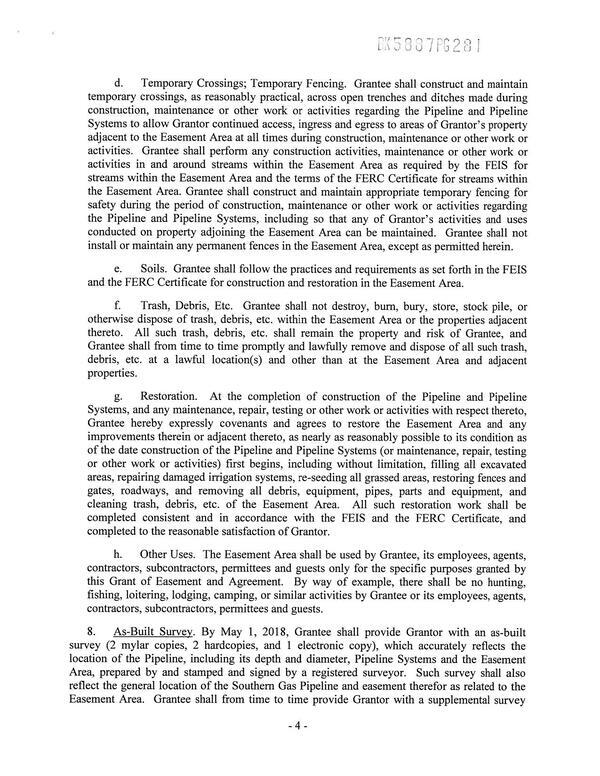

8. As-Built Survey. By May 1, 2018, Grantee shall provide Grantor with an as-built survey (2 mylar copies, 2 hardcopies, and 1 electronic copy), which accurately reflects the location of the Pipeline, including its depth and diameter, Pipeline Systems and the Easement Area, prepared by and stamped and signed by a registered surveyor.
PDF

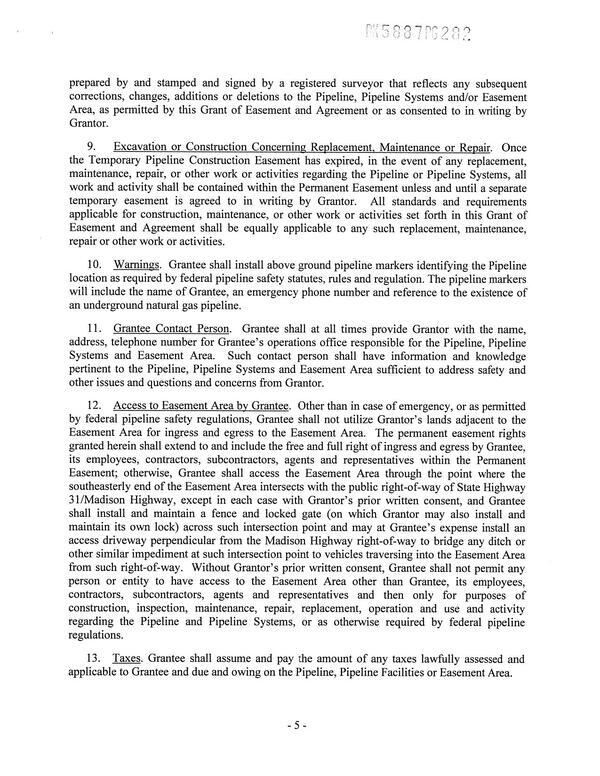

13. Taxes. Grantee shall assume and pay the amount of any taxes lawfully assessed and applicable to Grantee and due and owing on the Pipeline, Pipeline Facilities or Easement Area.
PDF

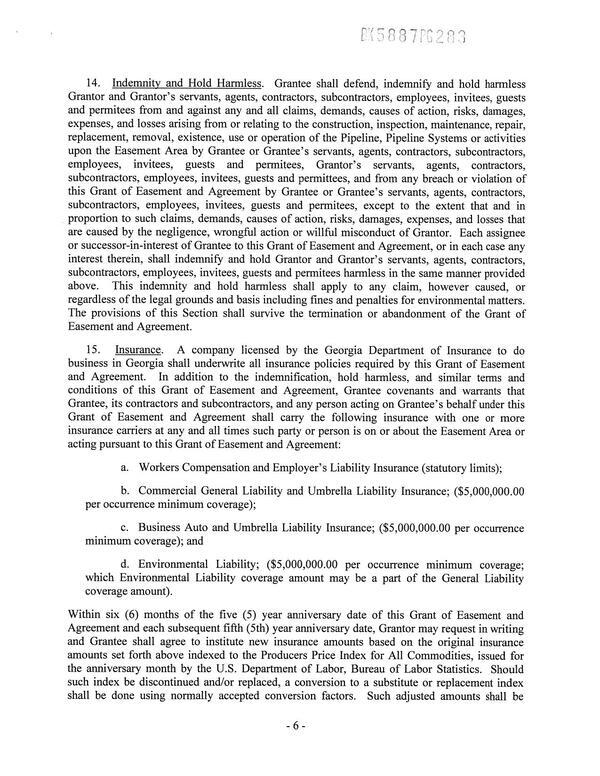

15. Insurance. … d. Environmental Liability; ($5,000,000.00 per occurrence minimum coverage; which Environmental Liability coverage amount may be a part of the General Liability coverage amount).
PDF

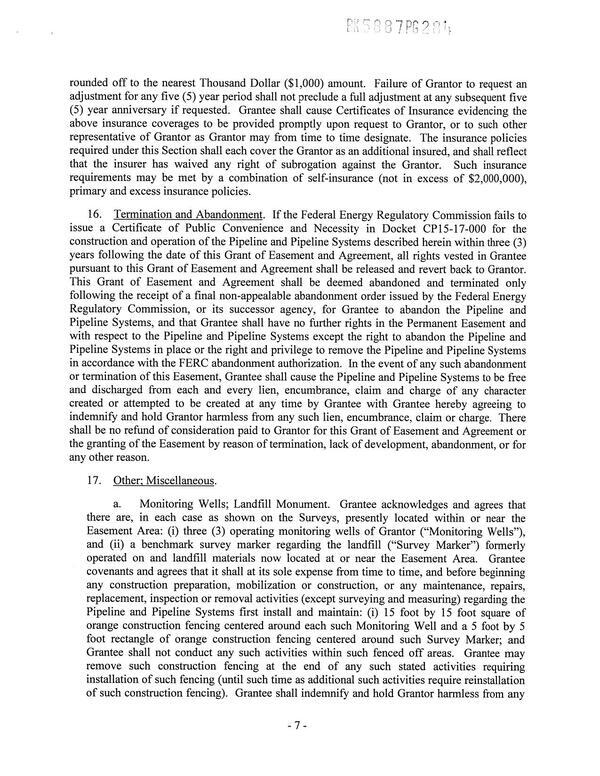

17.a. Monitoring Wells; Landfill Monument. Grantee acknowledges and agrees that there are
PDF

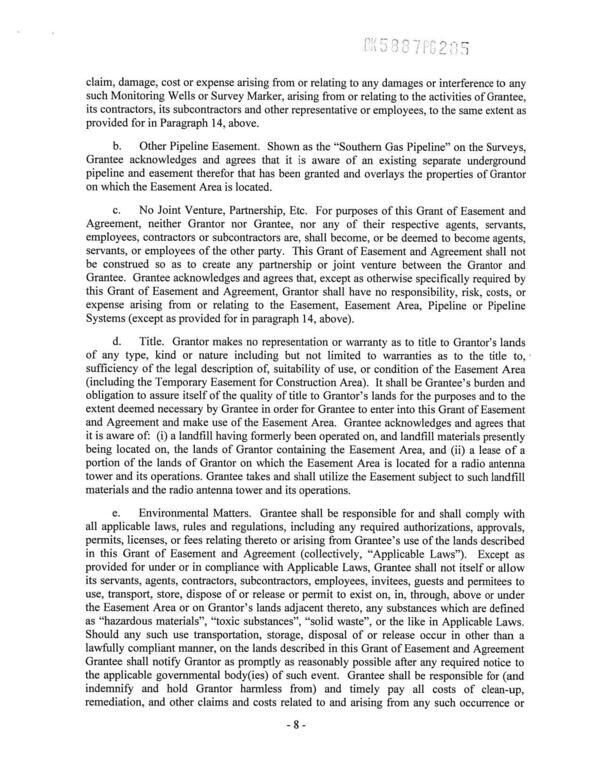

17.e. Environmental Matters. Grantee shall be responsible for and shall comply with all applicable laws, rules and regulations, including any required authorizations, approvals, permits, licenses, or fees relating thereto or arising from Grantee’s use of the lands described….
PDF

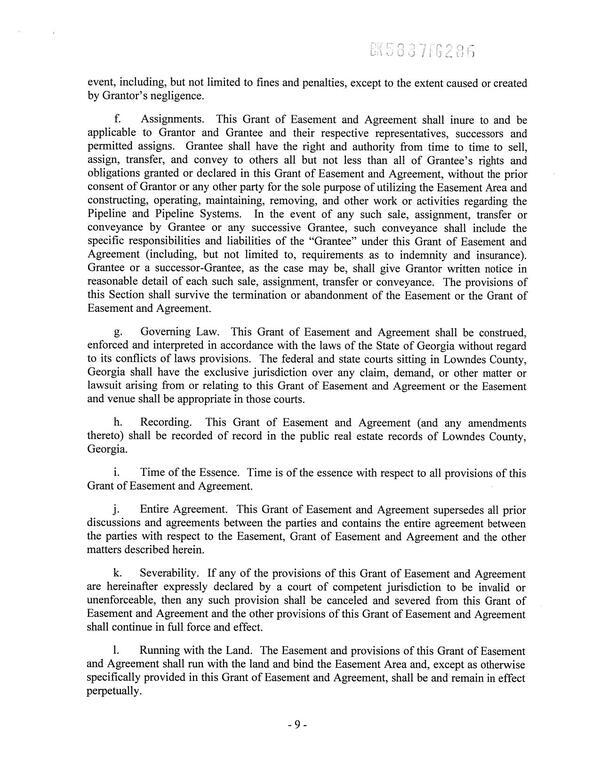

17.g. Governing Law. This Grant of Easement and Agreement shall be construed, enforced and interpreted in accordance with the laws of the State of Georgia without regard to its conflicts of laws provisions.
PDF

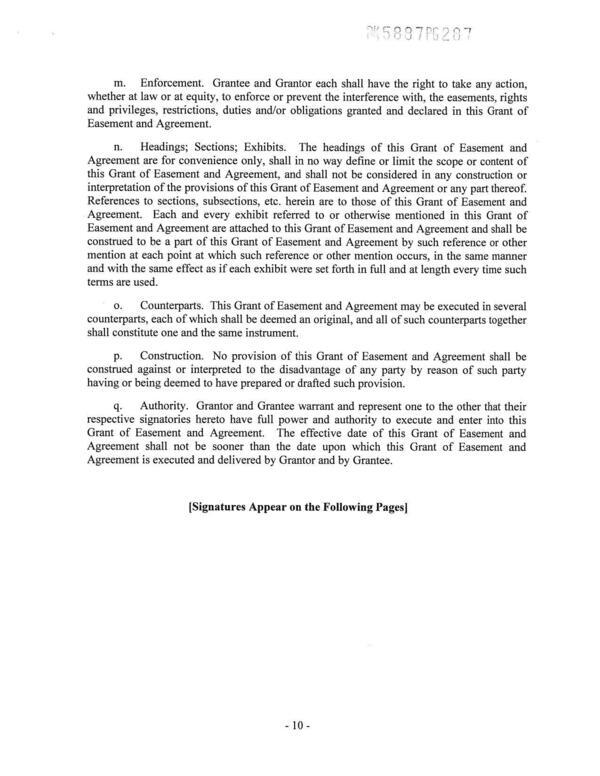

Page 10
PDF

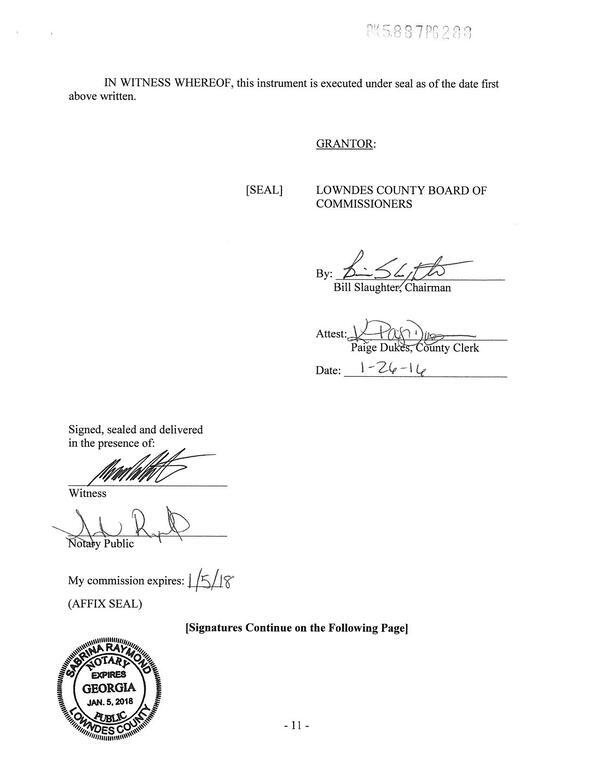

IN WITNESS WHEREOF, this instrument is executed under seal as of the date first above written. GRANTOR:
PDF

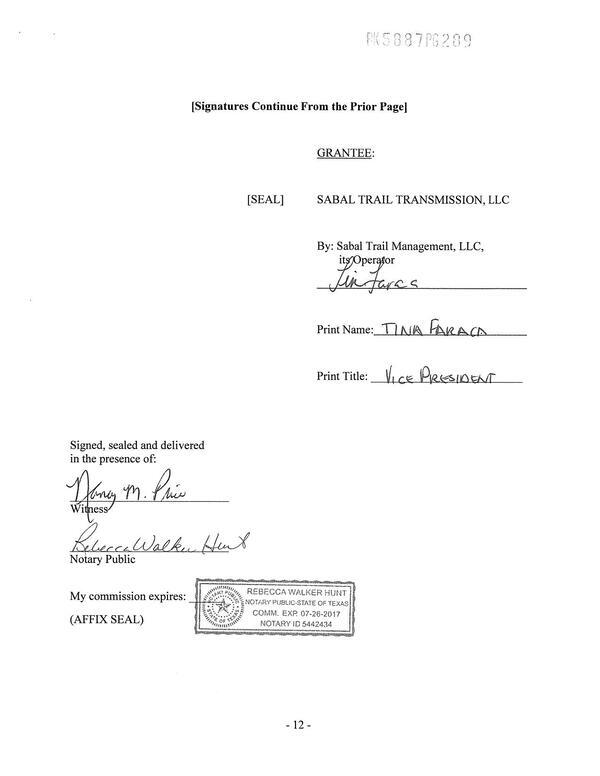

GRANTEE: [SEAL] SABAL TRAIL TRANSMISSION, LLC By: Sabal Trail Management, LLC, its Operator
PDF

ExhibitA

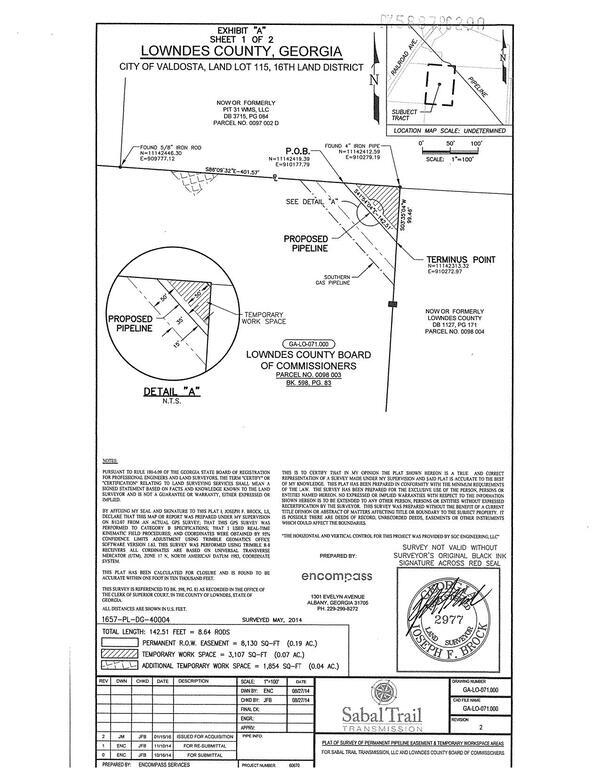

PLAT OF SURVEY OF PERMANENT PIPELINE EASEMENT & TEMPORARY WORKSPACE AREAS 2014-08-27 Parcel 0098 003
PDF

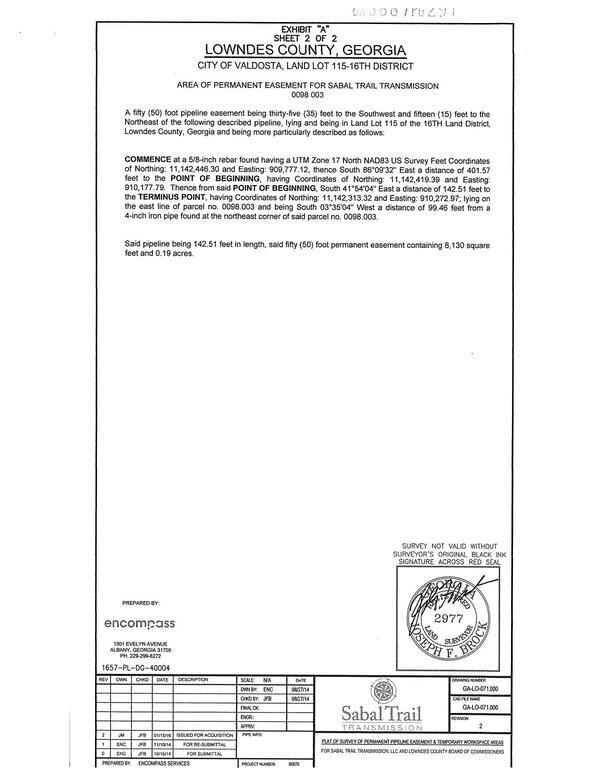

AREA OF PERMANENT EASEMENT FOR SABAL TRAIL TRANSMISSION 0098 003
PDF

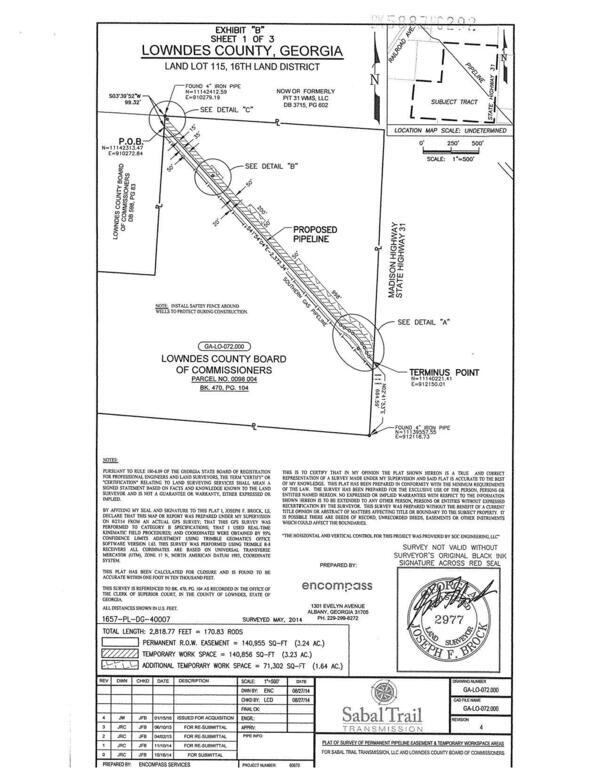

PLAT OF SURVEY OF PERMANENT PIPELINE EASEMENT & TEMPORARY WORKSPACE AREAS 2014-08-27 Parcel 0098 004
PDF

ExhbitB

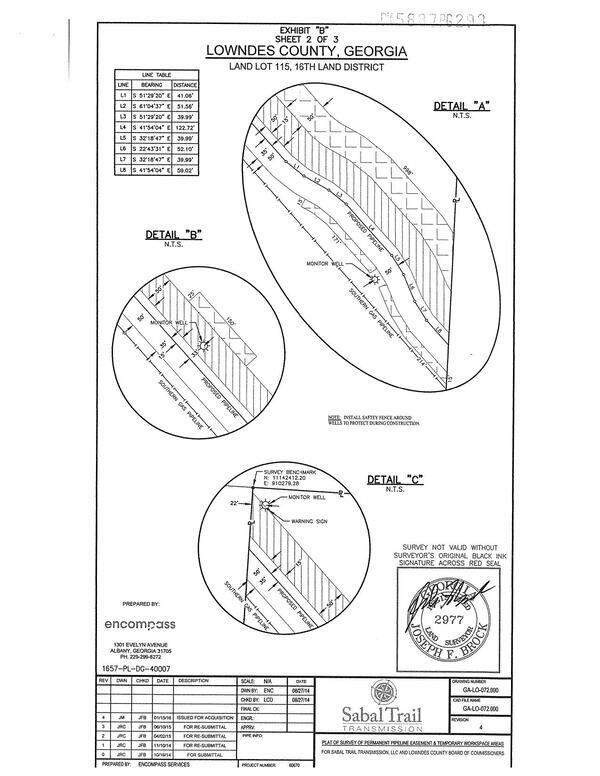

Detail maps with monitor wells and SONAT pipeline, 2014-08-27
PDF

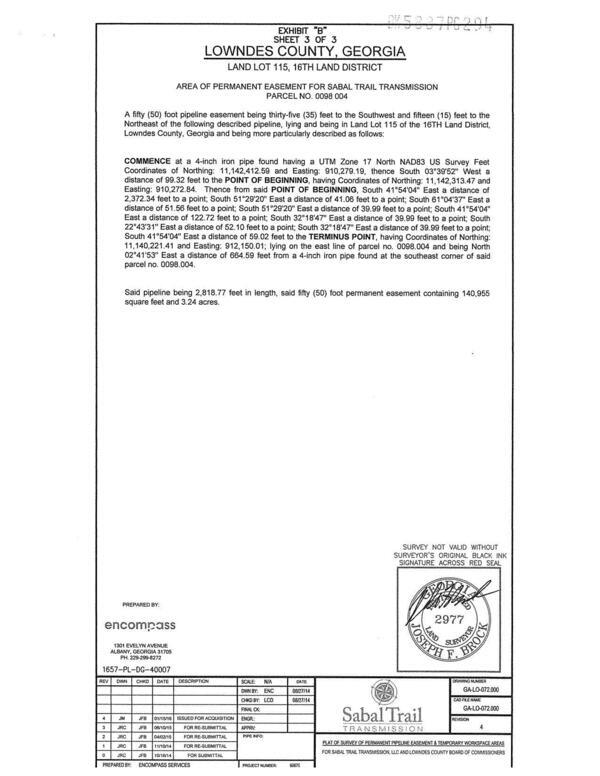

AREA OF PERMANENT EASEMENT FOR SABAL TRAIL TRANSMISSION PARCEL NO. 0098 004
PDF

-jsq
